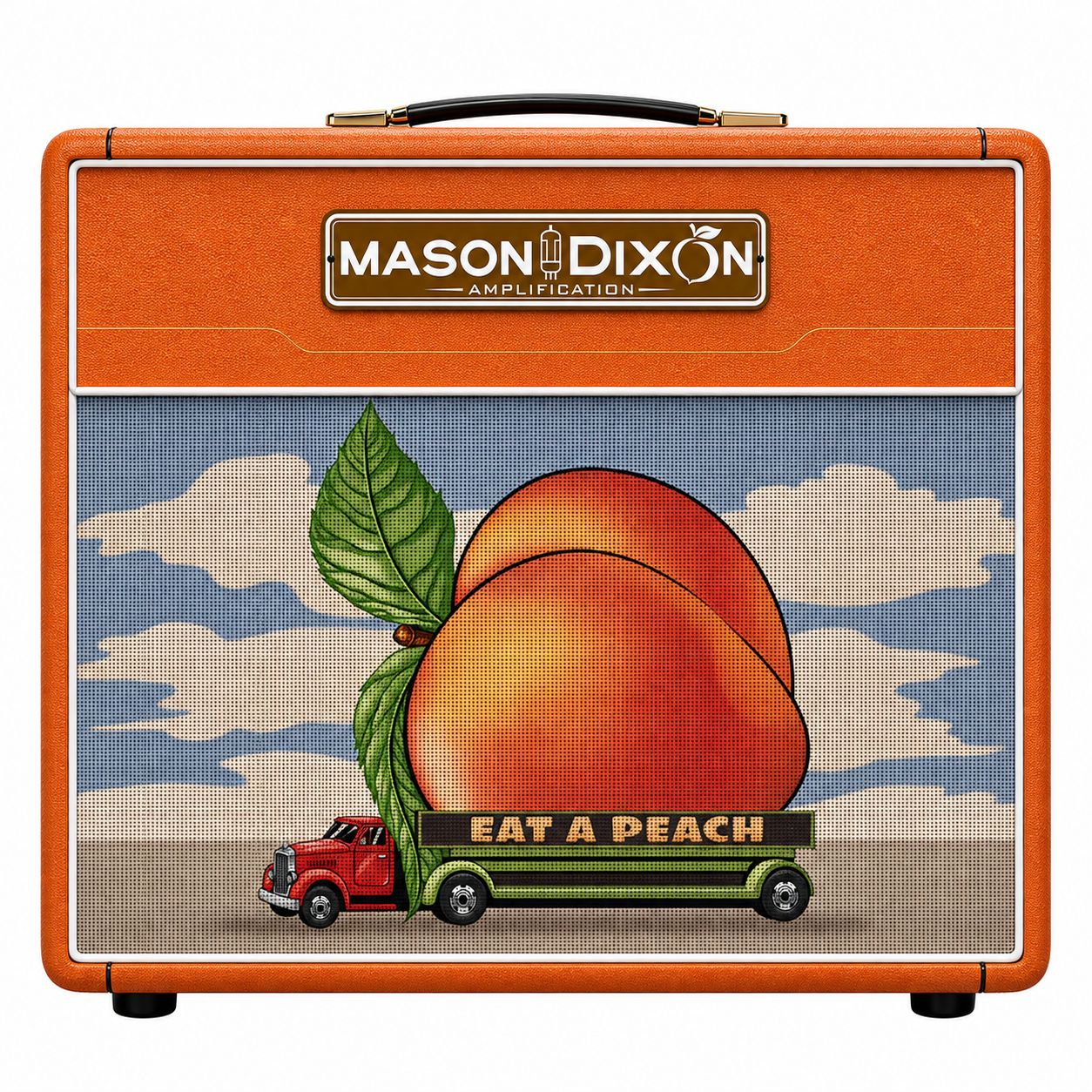

44 WATTS OF HANDWIRED FILLMORE TONE

The FE 44 Dickey Combo takes the Dickey-inspired Fillmore East voice into our most powerful handwired combo platform, delivering greater clean headroom, articulation, low-end authority and stage presence while retaining the clarity, definition and singing sustain at the heart of the Dickey-inspired sound.

The FE 44 delivers a commanding 44 watts through a point-to-point handwired circuit housed in a rugged aluminum chassis. Unlike the smaller FE models, the 44 features a dual-channel design built around a combination of 12AX7 and EF86 preamp tubes for increased tonal range, dynamics and harmonic complexity.

44 OR 20 WATTS

Our Half Power Switch lets you choose between the full 44-watt output or 20 watts.

Run the full 44 watts when you want maximum clean headroom, punch, low-end authority and stage volume, or switch down to 20 watts when you want to push the amplifier harder at more manageable levels.

This gives the FE 44 two distinctly useful personalities while retaining the fundamental response and character of the amplifier.

6L6 / 6CA7 POWER SECTION

The FE 44 Dickey comes standard with our preferred combination of a 6L6 and 6CA7 power tube.

This combination brings together the open response, clarity and headroom of the 6L6 with the punch, authority and stronger midrange character of the 6CA7. The result is a powerful, articulate response with a solid low end, rich harmonic content and the singing sustain that defines the Dickey-inspired voice.

The mixed power section gives the amplifier excellent note separation and definition while still allowing lead tones to become rich, vocal and sustaining as the amp is pushed.

CATHODE-BIASED FOR EVEN MORE TONAL POSSIBILITIES

The FE 44 features a cathode-biased power section, eliminating the need for conventional manual bias adjustments while opening up another level of tonal flexibility.

The circuit is designed to accommodate a variety of compatible power tubes, giving players the ability to explore different tube types and combinations, including KT66, KT77, 6L6, EL34 and 6CA7 types.

Changing power tubes can alter the feel, harmonic character, low-end response, midrange, attack and overall personality of the amplifier, giving the FE 44 an even broader range of tonal possibilities.

We ship the Dickey FE 44 with our preferred 6L6/6CA7 combination, but the cathode-biased design gives players the freedom to explore other compatible power-tube combinations as their tastes and playing styles change.

SIX-POSITION VOICING CONTROL

The FE 44 expands considerably on the voicing flexibility of our lower-powered Fillmore East models.

Six selectable positions allow you to move through different shades of the Fillmore East sound, beginning with the clearer, tighter and more articulate Dickey-inspired voice and moving through carefully developed intermediate settings toward the warmer, rounder and harmonically richer Duane-inspired side.

The additional positions let you fine-tune the balance of clarity, warmth, midrange character, attack and harmonic response rather than locking the amplifier into one sound.

At its heart, the Dickey version remains centered around the clarity, articulation, headroom and singing sustain that inspired the amplifier in the first place.

The HYBRID Speaker Design

A contributing sonic factor in the amplifier is the way the sound of the Hybrid speaker captures that JBL D120 midrange and punch. The speaker starts with a Peavey Black Widow and 4-inch voice coil and we recone them with exact JBL D120 parts for a much better-voiced speaker. Better bottom-end clarity than original JBL D120’s. And they are 15% louder than and original D Series speaker at lower volumes. A perfect match! Vintage JBL D120’S are available when we have stock. (Please email for current inventory)

JBL D 120 Speaker Upgrade Option

All of our models are available for a Vintage JBL D120 Speaker Upgrade just like Duane & Dickey used. These speakers have been reconed with a true paper to the edge D120 Kit for the exact tone. Drop us an email or feel free to call us for availability.

Optional Spring Reverb

Both models are available with true spring reverb. Reverb can be a really powerful musical spice. Most recordings include some kind of reverb to create dimension and space. Part of the Magic for the Fillmore Recordings was the Fillmore room itself. Whether you are playing a small gig or jamming at home or even the large venues, having onboard reverb adds to your overall tone.

Tech Specs :

• Single Channel Point to Point wiring
• Total Power: 44 Watts or 20 Watts with our Special Designed Half Power Switch
• Speaker Size: 1 x 12 Hybrid JBL D120 (optional 2x12 or head and cab)
• Preamp Tubes: 12AX7 - EF86
• Optional Spring Reverb
• Power Tubes: 2 KT66 Power Tubes or a mix match using one KT66 and one KT77
• EQ: Tone controls with Voice knob.
• Inputs: 2 x 1/4"
• Outputs: 2 x 1/4"
• Construction Material: Baltic Birch Cabinet with Gray/White Grille
• Power Source: Standard IEC AC cable
• Height: 20"
• Width: 23"
• Depth:10.5."
• Weight: 54 lbs.
• Allow 8 -10 Weeks Build To Ship Time ( The Build to ship time is an average estimate and these times may vary ) Feel free to contact us for more information.
