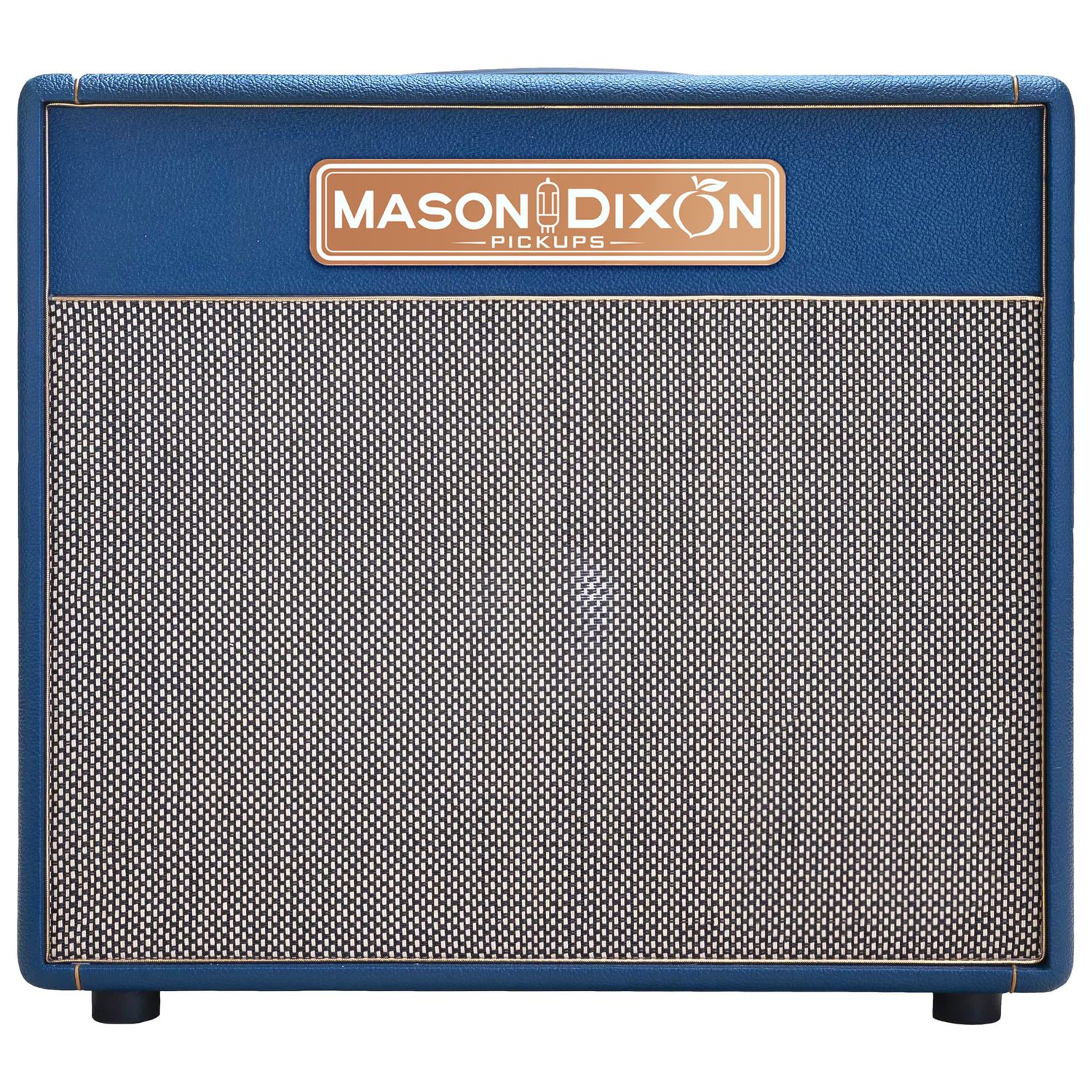

MASON-DIXON Fillmore East 44 Watt - Combo

44 WATTS OF HANDWIRED FILLMORE TONE PERFECTION

Now, enjoy the combined tonal versatility of Duane and Dickey in a single amplifier. With six distinct tone stack voicings, simply turn a knob to instantly switch between iconic tones.

And You Can Choose Between 44 or 20 Watts with Our New Half Power Switch Design.

This Handwired Amp is exactly what players have been looking for more than 50 years and feature some of the world's most sought-after Tones. The Fillmore East Tone in a 1x12 Combo. Choose from a Duane setting or a Dickey setting

This represents the first time anyone has offered a handwired amp based upon what made Legendary Players like Duane and Betts Famous. And the Tones don't stop there. Like the amps used on those special nights of recording, this new handwired amp shares the simplicity of operation and natural valve tones along with the correct modifications that make it stand out as one of the most iconic amp tones of all time.

The FE 44 Combo Amp

The FE Series delivers a roaring 44 watts of legendary Fillmore East-inspired tone, built around a handwired point-to-point circuit and housed in a rugged aluminum chassis. Designed for players chasing rich harmonic detail, blooming sustain, and dynamic touch response, the FE Series features a dual-channel design powered by a combination of 12AX7 and EF86 preamp tubes.

Depending on the model configuration, the power section can be equipped with classic KT66 tubes, but one of our favorite options is the custom mixed-tube configuration pairing a single KT66 with a KT77. The result is an incredibly rich, buttery midrange with enhanced harmonic complexity, tighter low end, and sustain that seems to hang in the air forever.

This unique tube combination adds a vocal quality to the amp that responds beautifully to both vintage-style cleans and saturated lead tones. For players seeking something beyond the ordinary, the optional KT66/KT77 pairing creates a feel and texture that is simply addictive.

As the output and mains transformers are vital components in any amplifier as they influence performance, sound, we added beefier transformers to increase headroom and stability. The amp uses tube rectification and is built like a tank.

Duane and Dickey Both used a combination of Modified Marshall amps as well as Fender amps to create those magical tones. We have now combined the best of both into one amp. The correct post Master volume allows you to dial in from bedroom levels to club level. Perfect for any Gig or recording.

---

Selectable Tone Stacks:

The Duane setting delivers the exact tone and response heard at the Fillmore East, based on the same modifications made to his amps for that performance.

The Dickey setting ranges from clean headroom to rich drive and sustain, capturing his Fillmore-era sound as well as the more modern tones from his later rigs.

The remaining positions expand the tonal range with Blackface Fender and Hendrix style tone stacks, along with carefully voiced in-between settings, allowing you to smoothly transition between classic circuits and dial in your own signature tone.

The HYBRID Speaker Design

A contributing sonic factor in the amplifier is the way the sound of the Hybrid speaker captures that JBL D120 midrange and punch. The speaker starts with a Peavey Black Widow and 4-inch voice coil and we recone them with exact JBL D120 parts for a much better-voiced speaker. Better bottom-end clarity than original JBL D120’s. And they are 15% louder than and original D Series speaker at lower volumes. A perfect match! Vintage JBL D120’S are available when we have stock. (Please email for current inventory)

JBL D 120 Speaker Upgrade Option

All of our models are available for a Vintage JBL D120 Speaker Upgrade just like Duane & Dickey used. These speakers have been reconed with a true paper to the edge D120 Kit for the exact tone. Drop us an email or feel free to call us for availability.

Optional Spring Reverb

Both models are available with true spring reverb. Reverb can be a really powerful musical spice. Most recordings include some kind of reverb to create dimension and space. Part of the Magic for the Fillmore Recordings was the Fillmore room itself. Whether you are playing a small gig or jamming at home or even the large venues, having onboard reverb adds to your overall tone.

Tech Specs :

• Single Channel Point to Point wiring
• Total Power: 44 Watts or 20 Watts with our Special Designed Half Power Switch
• Speaker Size: 1 x 12 Hybrid JBL D120 (optional 2x12 or head and cab)
• Preamp Tubes: 12AX7 - EF86
• Optional Spring Reverb
• Power Tubes: 2 KT66 Power Tubes or a mix match using one KT66 and one KT77
• EQ: Tone controls with Voice knob.
• Inputs: 2 x 1/4"
• Outputs: 2 x 1/4"
• Construction Material: Baltic Birch Cabinet with Gray/White Grille
• Power Source: Standard IEC AC cable
• Height: 20"
• Width: 23"
• Depth:10.5."
• Weight: 54 lbs.
• Allow 8 -10 Weeks Build To Ship Time ( The Build to ship time is an average estimate and these times may vary ) Feel free to contact us for more information.
